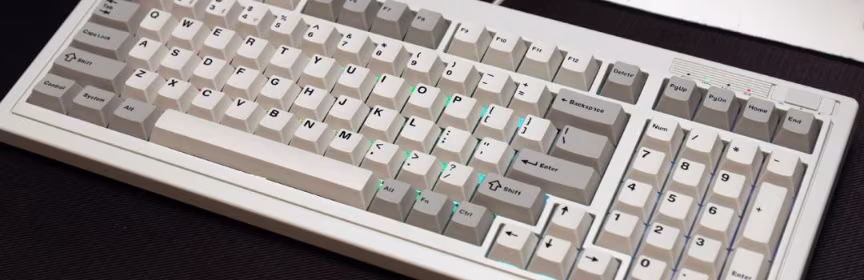

The Keychron R5 is a wireless mechanical keyboard utilizing a 96% layout, noted for blending retro aesthetic details with modern functionalities. Priced at an MSRP of $90, the design intentionally mimics classic keyboards such as the IBM Model M. This nostalgic appeal is visible in its color scheme of beige, tan, and grey, featuring a thick border reminiscent of older electronics. Additional attention to detail is seen in matching braided USB cables, the wireless dongle, and the dark tan retail box accented with gold.
The keyboard operates on a 99-key layout and adheres to the standard North American ANSI configuration. Structurally, it uses a gasket-mounted polycarbonate plate, which contributes to a typing feel described as somewhat “squishy” and muted. The switches included are Keychron’s Apex Red linear mechanical switches; these have an actuation force of 45g and come factory lubricated for smooth operation. A key feature is the hot-swappability, supporting both three-pin and five-pin variants to aid customization.
Regarding connectivity, the R5 supports multiple modes: 2.4GHz wireless, Bluetooth 5.3, and wired USB Type-C connection. It houses a large 4000mAh rechargeable battery. The reviewer reported that this capacity provides approximately seven days of mixed use when RGB lighting is activated at full brightness. Performance metrics include support for N-key rollover (NKRO) across all modes and maintaining a 1000Hz polling rate in both wired and 2.4GHz connections, which lowers to 125Hz over Bluetooth.
Durability features include double-shot PBT keycaps, materials noted for their resistance to shine or fading. The board also offers customization through 22 types of RGB backlighting options, manageable via the web-based Keychron Launcher utility, described as easy to navigate. Out of the box, the R5 comes with a comprehensive array of accessories, including extra keycaps, switches, a keycap/switch puller, and replacement silicone feet.
However, the product does present certain drawbacks. The keyboard is noted for lacking an integrated volume knob or a dedicated palm rest. Furthermore, its ABS plastic frame reportedly exhibits some flex when subjected to pressure. While minor legend printing errors were observed on the review unit’s keycaps, this was mentioned as a potential one-off issue. Charging the substantial battery capacity is another point of note, requiring up to five hours for a complete recharge.
In summation, the Keychron R5 is characterized as a significant option for users seeking retro styling combined with modern amenities. It effectively merges visual nostalgia with contemporary features such as hot-swappable switches and robust wireless connectivity. The final numeric assessment provided by the reviewer was 7.5 out of 10, classifying it as “a great product with many advantages and certain insignificant drawbacks.”
Source: APH Networks
