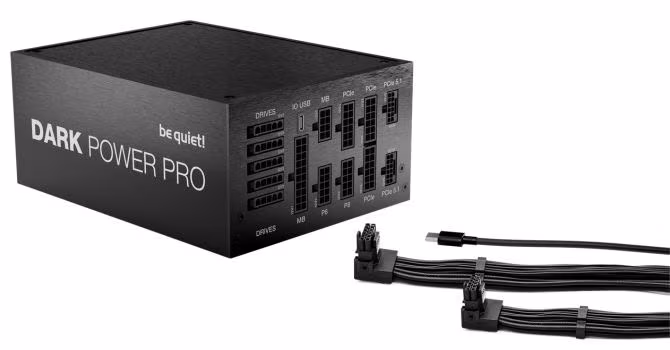

The be quiet! Dark Power Pro 14 IO is a new flagship power supply designed for high-end gaming systems, overclocked workstations, and configurations requiring power-hungry graphics cards. The unit is available in 1300W and 1600W capacities, certified with 80 PLUS Titanium and Cybenetics Titanium efficiency ratings.
The power supply is built around a digitally controlled Active Rectifier with Full-Bridge LLC and DC-to-DC topology. Internal components utilize 105°C Japanese capacitors from Nippon Chemi-Con, Rubycon, and Nichicon. Cooling is managed by a 135mm Silent Wings 4 fluid dynamic bearing fan and internal aluminum heatsinks, allowing for semi-passive zero-RPM operation.
Physical dimensions for the unit are 200mm deep, 150mm wide, and 86mm tall. Depending on the configuration, the weight ranges from 2.63kg to 2.68kg. The chassis employs a heavy-duty anodised aluminium design with a high-airflow mesh front, resulting in a construction that is described as built like a proverbial tank.
The defining feature of the PSU is the IO Center software suite. This system allows owners to monitor and reconfigure the power supply entirely through software rather than physical switches. Through IO Center, users can toggle between Multi-Rail and Single-Rail 12V operation, switch the fan between Performance and Semi-Passive modes, and track real-time efficiency, power input, per-rail current, and voltage.
IO Center also functions as a unified control hub for be quiet!’s expanding ecosystem of coolers, fans, keyboards, mice, and displays. The software includes a browser-based IO Center Web version that runs cross-platform through any Chromium-based browser without requiring an account.
Connectivity standards are modern, with the unit fully compliant with ATX 3.1 and PCIe 5.1 standards. It features dual native 12V-2×6 connectors with angled headers and individually single-sleeved modular cables. The 1600W model supports up to 1,000W of combined output via these connections.
In multi-rail mode, the 1600W unit delivers 1600W across six 12V rails (V1-V6). In single-rail mode, the 12V rail provides 133.3A capacity.
Performance results are stable, delivering clean power and excellent electrical results across the tested load range. The high efficiency limits heat generation, supporting the low-noise cooling design and reducing the need for aggressive fan speeds.
Acoustics are excellent. The 135mm Silent Wings fan remains unobtrusive, and the semi-passive mode permits completely fanless operation under lighter loads. The system is practically silent for any load under 1100W, with a noise profile free of higher pitched harmonics or air noise.
Cable quality is a strong point, with the PSU shipping with plenty of cable options and including cable combs and Velcro cable ties for aesthetic management. The only noted criticism involves the 12V-2×6 connectors. be quiet!’s documentation identifies no additional connector-specific protection. There are no temperature sensors, current-level monitoring, or IO Center warnings for these plugs.
Reviewers noted that localized resistance at an incompletely inserted or damaged terminal can generate substantial heat while the total current remains below the PSU’s overcurrent threshold, describing this lack of protection as a missed opportunity.
Overall performance is highly rated. OC3D called the unit
