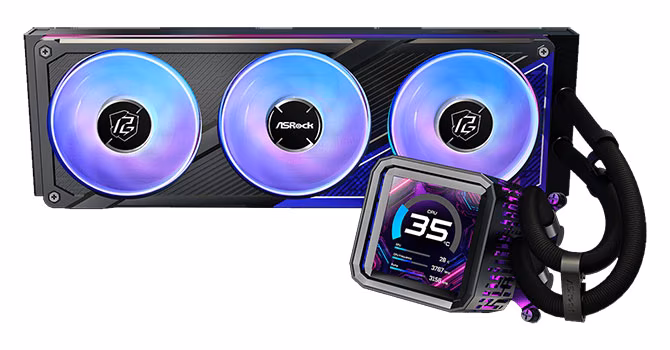

ASRock, a company originally focused on motherboards since 2002, has expanded its offerings to include liquid CPU coolers. The ASRock Phantom Gaming 360 LCD is a 360 mm all-in-one liquid CPU cooler that features a prominent pump-mounted display. This design also incorporates a fan within the display housing, which ASRock uses to assist with cooling the motherboard VRMs.
The unit is equipped with a 3.4-inch 60 Hz IPS display and is designed to improve VRM cooling, adding a distinct visual element through its integrated fan frame and halo ARGB lighting.
In terms of performance, the cooler delivers solid, mid-tier performance, though it does not enter top-tier territory. Compared to leading 360 mm all-in-one liquid coolers, it generally runs a small, noticeable degree warmer—typically 2–3°C behind top competitors. This gap narrows to roughly 2°C when normalized for noise levels at 45 dBA. Nonetheless, the Phantom Gaming 360 LCD remains functional, handling both AM5 and LGA1700 platforms stably under sustained loads. It can dissipate 250 watts on AMD systems, and this capacity extends to 350 watts for Intel workloads.
Focusing on noise, the cooler performs well, primarily due to the zero RPM function on the radiator fans, allowing them to remain off during low loads for quiet operation. While the fans can reach a maximum of 57 dBA at maximum PWM/RPM, the noise-normalized tests suggest a mostly silent to only moderately audible profile when using a custom PWM fan curve. The test unit did not exhibit any unusual gurgling or high-pitched sounds from the pump.
Regarding build quality, the cooler is described as solid, with straightforward installation. Although it is slightly thicker than typical AIO units, the overall fit and finish, including the installation hardware, are well-executed. The unified fans simplify both installation and removal while also allowing for creative ARGB lighting options. The cooler carries a six-year warranty for the AIO itself, which is noted as being among the best available.
The included IPS display is sharp and clear, though its limited two-year warranty is a drawback, contrasting with the cooler’s generous warranty. The USB cable for the display, while functional, is slightly short for optimal cable management.
Ultimately, the primary weakness identified is the performance per dollar, given that features like built-in displays and unified fan frames are now established in the market. While ASRock implemented the features successfully, the price point remains high. If the price were more competitive or the display warranty were more generous, the product would be more appealing. However, the cooler does provide a distinctive visual flair through its ARGB lighting, complementing the display well.
In conclusion, the ASRock Phantom Gaming 360 LCD offers reliable performance on both AMD and Intel platforms and includes compelling features, such as zero-RPM fan mode for quiet operation during lighter loads. With its adequate and simple-to-manage customizable display and generous warranty, it presents a viable option, particularly for users not restricted by budget considerations.
Source: TechPowerUp
